DGC多級磁力驅動泵結構特點
時間：2012-11-3 來源：揚子江泵業 瀏覽數：1328

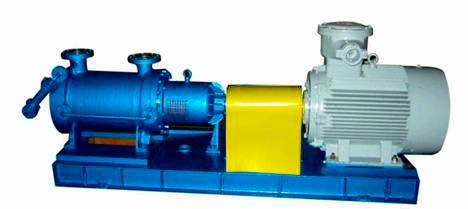

DGC型泵是雙層殼體磁力驅動多級離心泵。該產品旨在解決小流量，高揚程的流體輸送問題。該產品結構設計、水力設計及磁路設計先進新穎，技術達到國內領先水平。首家成功地將磁力驅動技術應用于多級離泵，解決了大功率，大間隙磁路設計問題，居國內領先地位。同時解決了高工作壓力下多級泵的軸向力平衡及靜密封問題。磁力驅動聯軸器及軸承失效監控裝置的配合，更保障了泵長期安全可靠運行。
適宜輸送不含固體顆粒的易燃、易爆、劇毒的介質和其它要求無泄漏及不允許密封污染的介質。廣泛地應用于油田增壓注水，高中壓遠距離輸水、輸油，電廠疏水泵，煉化和煤化工行業液烴泵、順丁像膠，加氫精制及鉑重速裝置等。
DGC is a kind of magnetic-driving, double-casing, multi-stage centrifugal pump, aiming to solve the problem of conveying liquid of little capacity, high-lift. The structure design, hydro -mechanical design and magnetic design are domestically advanced. HIGHLAND is the leading company that has successfully applied magnetic driving technology into multi-stage pump in
It is suitable to convey inflammable, explosive, severely poisonous mediums without solid particles, and other mediums requiring no seal pollution. It is widely applied into oil field pressurizing water injection, long-distance conveying water or oil under high and middle pressure, drain pump plant, petrochemical and coal chemical industry liquid hydrocarbon pumps, butadiene rubber, hydrofining and platinum heavy speed devices, etc.
結構特點Design features
（1）臥式徑向剖分，外殼為筒形結構，內殼為節段式結構
（2）全密封、無泄漏，無污染
（3）根據介質溫度選用底腳支承(基本型)和中心支承(高溫型)
（4）大功率磁性驅動
（5）入口可水平、垂直或側向任意角度布置，水平布置更利于采取的措施提高泵的抗汽蝕性能
（6）出口可垂直或側向任意角度布置
（7）可選用與電機直聯或帶膜片連接器兩種結構
（8）內循環的冷卻和潤滑方式，更適宜輸送各種流體介質，包括易汽化介質
（1）Radial horizontal subdivision, cylindrical outer shell, sectional inner shell
（2）Fully sealed, non-leaking, non-polluting
（3）The foot support (basic type) and the center support (high-temperature type) can be adopted according to the medium temperature.
（4）High-power magnetic driving
（5）The inlet can be horizontally, vertically or laterally arranged or in any other angle; the horizontal layout is more conductive to the measures taken to improve the anti-cavitation performance of the pump.
（6）The outlet can be in vertical arrangement or lateral in any angle.
（7）Direct motor linking or by connector with prince film
（8）Internal recycling way of cooling and lubricating; it is more suitable for conveying a variety of fluid mediums, including the easily-vaporized mediums.
性能范圍 The main specifications:
流量Capacity： 3～280m3 /h
揚程Head:86～600m
溫度Temperature: -40℃ ～ +250 ℃
大工作壓力The max working pressure:6-25MPa
型號標記Code system
DGC標準性能表 泵 型 號 流量(m3/h) 揚程 轉速(r/min) 效率(%) 功率(kW) 必需汽蝕余量NPSHr(m) 軸功率 電機功率 DGC1.6-50× 2 100 2950 13 3.35 7.5 2 3 150 5.03 11 4 200 6.07 15 5 250 8.38 15 6 300 10.05 18.5 7 350 11.73 22 8 400 13.4 22 DGC3-43× 2 3 86 2950 13.5 5.2 7.5 2 3 129 7.8 11 4 172 10.4 15 5 215 13 18.5 6 258 12 17.6 22 7 301 20.5 30 8 344 23.4 30 9 387 26.3 37 10 430 29.3 37 DGC6-25× 3 6.3 75 2950 33 3.9 5.5 2.5 4 100 5.2 7.5 5 125 6.5 11 6 150 7.8 11 7 175 9.1 15 8 200 10.4 15 9 225 11.7 15 10 250 13 18.5 11 275 14.3 18.5 12 300 15.6 22 DGC6-43× 2 6 86 2950 21 6.7 11 2 3 129 10 15 4 172 13.4 18.5 5 215 16.7 22 6 258 20.1 30 7 301 23.4 30 8 344 26.8 37 9 387 30.1 37 10 430 33.4 45 DGC10-40× 2 10 80 2950 33 6.6 11 2.3 3 120 9.9 15 4 160 13.2 18.5 5 200 16.5 22 6 240 19.8 30 7 280 23.1 30 8 320 26.4 37 9 360 29.7 37 10 400 33 45 DGC12-25× 3 12.5 75 2950 42 6.08 7.5 2 4 100 8.1 11 5 125 10.1 15 6 150 12.2 15 7 175 14.2 18.5 8 200 16.2 22 9 225 18.3 22 10 250 20.3 30 11 275 22.3 30 12 300 24.3 30 DGC12-50× 3 12.5 150 2950 28 18.2 30 2.7 4 200 24.3 30 5 250 30.4 37 6 300 36.5 45 7 350 42.5 55 8 400 48.6 55 9 450 54.7 75 10 500 60.8 75 11 550 66.8 90 12 600 72.9 90 DGC25-30× 3 25 90 2950 50 12.2 15 2.9 4 120 16.3 22 5 150 20.4 30 6 180 24.5 30 7 210 28.6 37 8 240 32.7 45 9 270 36.8 45 10 300 40.8 55 DGC25-50× 2 25 100 2950 40 17 22 2.9 3 150 25.5 37 4 200 34 45 5 250 42.5 55 6 300 51 75 7 350 59.5 75 8 400 68 90 9 450 76.6 110 10 500 85.1 110 DGC46-30× 3 46 90 2950 58 19.4 30 3.5 4 120 25.9 37 5 150 32.4 45 6 180 38.9 55 7 210 45.3 55 8 240 51.8 75 9 270 58.3 75 10 300 64.8 90 DGC46-50× 2 46 100 2950 51 24.6 30 3.5 3 150 36.8 45 4 200 49.1 75 5 250 61.4 75 6 300 73.7 90 7 350 85.9 110 8 400 98.2 132 9 450 110 132 10 500 122 160 11 550 135 160 12 600 147 185 DGC85-45× 2 85 90 2950 56 37 45 4.2 3 135 55 75 4 180 74 90 5 225 93 110 6 270 112 160 7 315 130 160 8 360 149 185 9 405 167 220 DGC85-80× 2 85 160 2950 53 70 90 4.4 3 240 104 132 4 320 139 185 5 400 174 220 6 480 208 250 7 560 243 315 DGC155-30× 3 155 90 1480 63 60 75 3.6 4 120 80 110 5 150 100 132 6 180 120 160 7 210 140 185 8 240 160 200 9 270 180 220 10 300 200 250 DGC280-43× 2 280 86 1480 65 100 132 4 3 129 151 185 4 172 201 250 5 215 250 315
